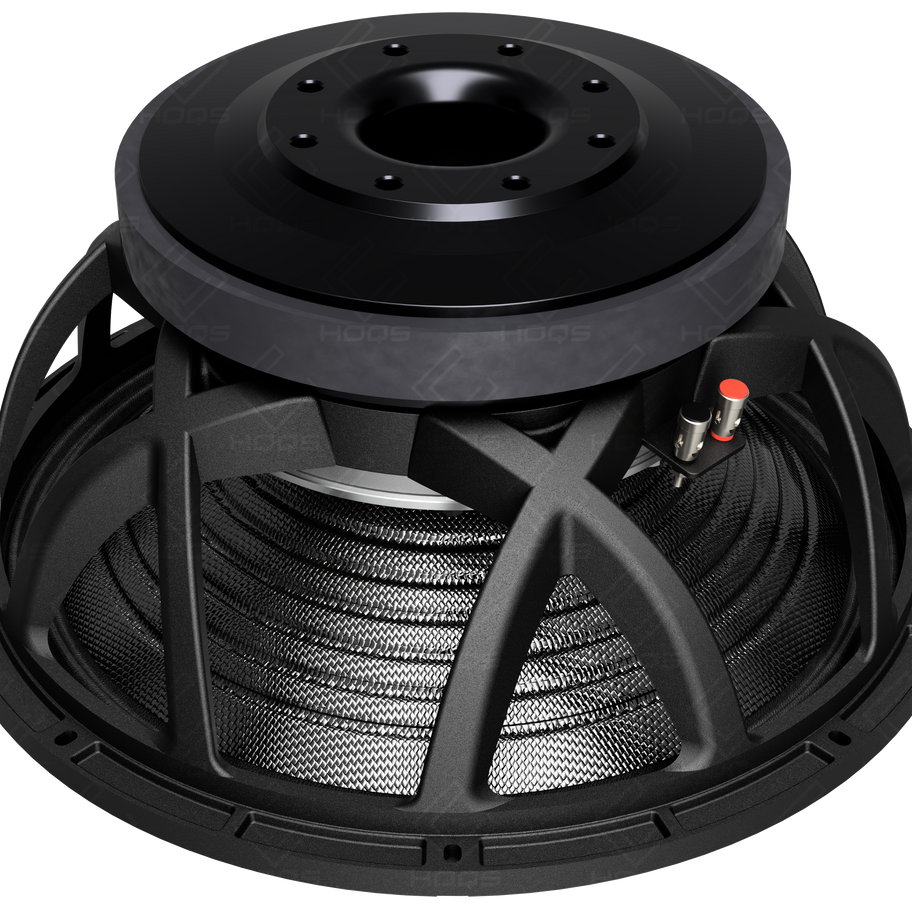

HOQS F185C 18" Subwoofer
$899.00
Sales Tax Included
This driver's motor is designed with Finite Element Analysis modeling (FEA) and outfitted with high grade Y35 ferrite material at 30mm thickness to produce an abundance of motor force. Optimized for HOQS Paraflex cabinet designs but will also work in other Folded Horn subwoofers designs, Scoops, RLH/BLH, QWP, FLH, Tapped Horn, Bandpass or Reflex cabinets.
Quantity
PRODUCT INFO
- Durable and stiff Carbon Fiber cone.
- Custom chamfered top-plate toimprove airflow & cooling.
- Bumped back plate.
- 1700W "Nominal" power handling.
- 3400W "Program" power handling.
- Aluminum demodulation ring to reduce voice coil inductance and linearize it across stroke thereby also reducing distortion.
- Inside-Outside wound 125mm (5") diameter Oxygen Free Copper coil on a fiberglass former.
- Custom dual spider set composed of Conex fabric, treated with silicone.
SPECIFICATIONS
|
Specifications |
|
|
Nominal Diameter |
18" |
|
Power Handling |
1700 W "Nominal" |
|
Power Handling |
3400 W "Program" |
|
Voice Coil Diameter |
125 mm / 5" |
|
Nominal Impedance |
8 Ohms |
|
Winding Material |
Oxygen Free Copper Inside-Outside wound |
|
Former Material |
Fibreglass |
|
Winding Depth |
34 mm |
|
Magnetic Gap Depth |
14 mm |
|
Top Plate |
Chamfered |
|
Back Plate |
T Yoke - Bump depth 8mm |
|
Cone Material |
Carbon Fiber |
|
Magnetic Material |
Ferrite |
|
Spider |
Dual Silicone treated Conex Fabric |
|
|
|
|
Parameters |
|
|
Sd |
1225 cm² |
|
Qts |
0.23 |
|
Mms |
281.5g |
|
Fs |
29.5 Hz |
|
Re |
5.7 Ohm |
|
Η₀ |
2.11% |
|
Vas |
242 L |
|
Le @ 1Khz |
1.644 mh |
|
BL |
34.54 Tm |
|
Xmax |
13.5 mm |
|
Qes |
0.23 |
|
Xmech Peak to peak |
56 mm |
|
Qms |
14 |
|
Mmd |
233 g |
MOUNTING AND SHIPPING INFORMATION
|
Mounting & Shipping Information |
|
|
Overall Diameter |
461 mm / 18.15" |
|
Bolt Circle Diameter |
442 mm / 17.40" |
|
Cutout Diameter |
424 mm / 16.69" |
|
Total Depth |
215 mm / 8.46" |
|
Bolt Hole Diameter |
6.5 mm |
|
Number of Bolt Holes |
8 |
|
Net Weight |
21 kg |
|
Shipping Weight |
24.75 kg |
|
Shipping Box |
540 mm x 540 mm x 310 mm |
